Product description

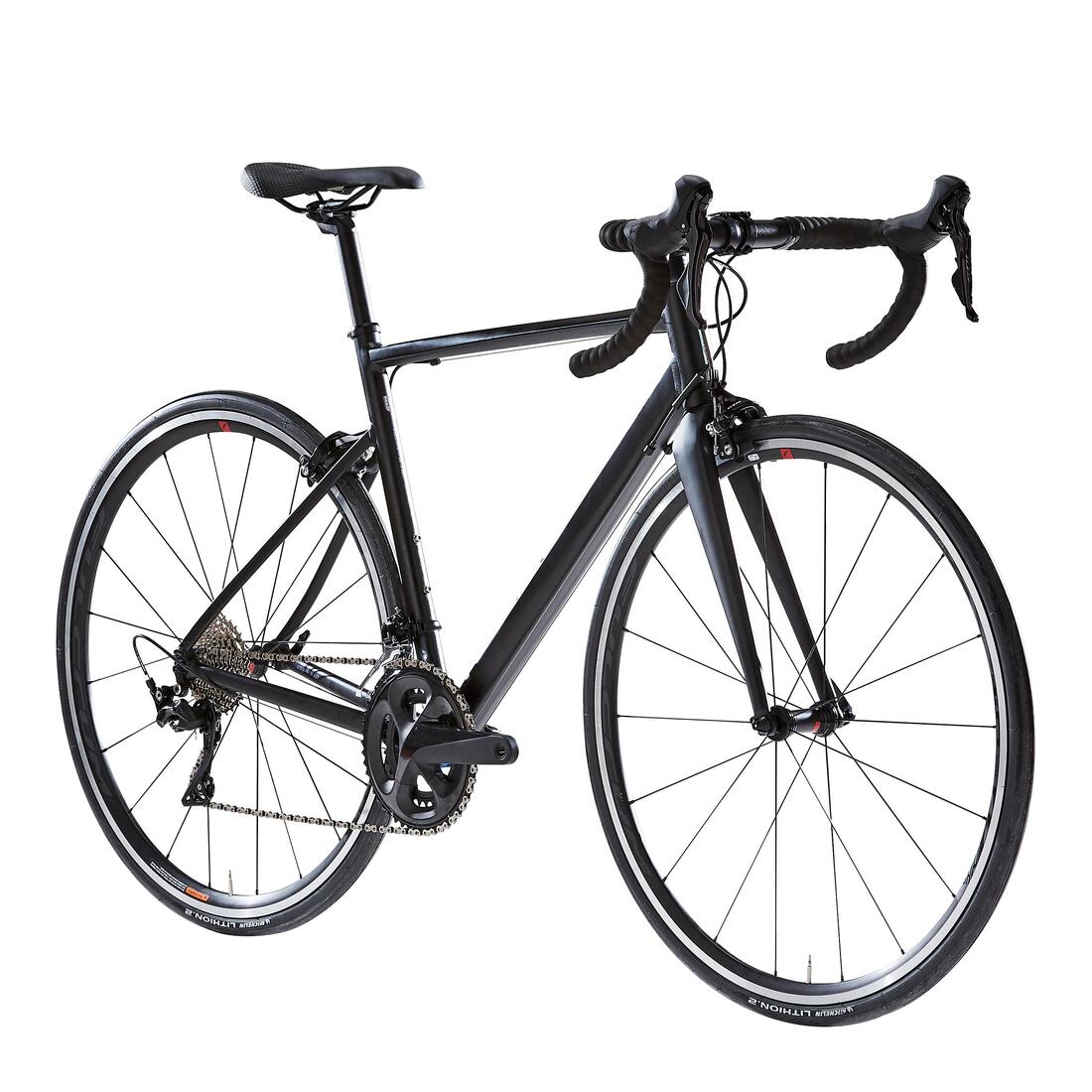

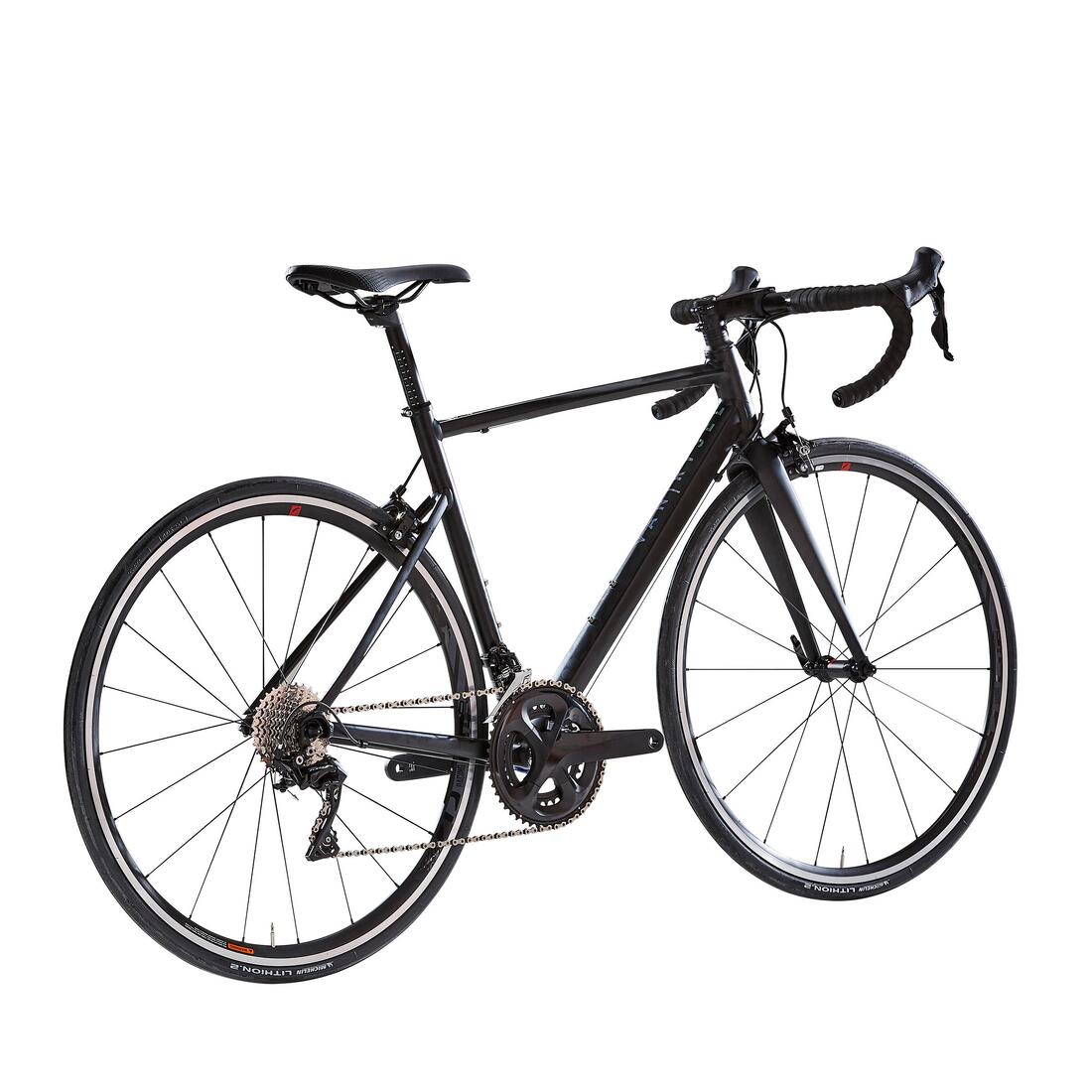

Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF 105 combines handling and comfort.

This lightweight bike is made for speed. Enjoy the performance of the aluminium frame, carbon/aluminium fork, Shimano 105 groupset and R6 fulcrum wheels.

VAN RYSEL

Road Bike EDR AF 105

Sale priceDhs. 6,750.00
Sold out

Size Guide

MEN SIZE GUIDE



How to measure:

  • Head size: Wrap a tape measure horizontally around your head just below your eyebrows.
  • Chest size: Wrap a tape measure horizontally around the widest part of your chest.
  • Waist size: Wrap a tape measure horizontally around the widest part of your waist.
  • Hand size: Wrap a tape measure horizontally around your hand, starting from your thumb.
  • Shoe size: Place your heels flush against a wall. Place a heavy object (such as a book) against your toes. Measure the distance between the wall and the object.

TOPS (T-SHIRT, PULLOVER, JACKET)
 Size XS S M L XL 2XL 3XL 4XL
Chest (cm) 84-87 88-91 92-95 96-103 104-113 114-123 124-135 136-146



BOTTOMS (SHORTS, PANTS, BOARDSHORTS)
 Size XS S M L XL 2XL 3XL
Hips (cm) 84-86  87-91  92-97 98-104 105-111 112-118 119-126



SWIMWEAR
 Size S M M-L L L-XL XL XL-2XL 2XL
Hips (cm) 84-87 88-91 92-95 96-103 104-113 114-123 124-135 136-146



WOMEN SIZE GUIDE



How to measure:

  • Head size: Wrap a tape measure horizontally around your head just above your eyebrows.
  • Chest size: Wrap a tape measure horizontally around the widest part of your chest.
  • Band size: Wrap a tape measure horizontally around your torso just below your breasts.
  • Waist size: Wrap a tape measure horizontally around the widest part of your waist.
  • Hip size: Wrap a tape measure horizontally around the largest part of your hips.
  • Hand size: Wrap a tape measure horizontally around your hand, starting from your thumb.
  • Shoe size: Place your heels flush against a wall. Place a heavy object (such as a book) against your toes. Measure the distance between the wall and the object.
    TOPS (T-SHIRT, PULLOVER, JACKET)
    Size 3XS 2XS XS S M M-L L L-XL XL XL-2XL 2XL
    Chest (cm) 76-79 80-83 84-87 88-91 92-95 96-99 100-103 104-107 108-113    114-118 119-123

    BOTTOMS (SHORTS, PANTS)
     Size 3XS 2XS XS S M L XL 2XL 3XL
    Hips (cm) 81-85 86-90 91-96 97-102 103-108 109-114  115-120 121-128 129-136



    BRA
    Size 70A 70B 70C 70D 75A 75B 75C 75D 75E 80A 80B 80C 80D 80E 85B 85C 85D 85E
    Chest size (cm) 80-86 80-86 80-86 80-86 86-92 86-92 86-92 86-92 86-92 92-100 92-100 92-100 92-100 92-100 100-106 100-106 100-106 100-106



    SWIMWEAR
    Size XS S M M-L L L-XL XL XL-2XL 2XL
    Hips (cm) 90-93 94-97 98-101 102-105 106-109 110-113 114-119 120-125 126-131



    KIDS SIZE GUIDE





    How to measure:

    • Clothing size: Stand upright and place your bare heels flush against a wall. Measure the distance between the bottom of your foot and the top of your head.
    • Head size: Wrap a tape measure horizontally around your head just above your eyebrows.
    • Hand size: Wrap a tape measure horizontally around your hand, starting from your thumb.
    • Shoe size: Place your heels flush against a wall. Place a heavy object (such as a book) against your toes. Measure the distance between the wall and the object.



      APPAREL
      Age 3 Months 6-9 Months 9-12 Months 18 Months 2 Years 3 Years 4 Years 5 Years 6 Years 8 Years 10 Years 12 Years 14 Years
      Height (cm) 56-63 64-70 71-76 77-82 83-89 90-97 98-104 105-114 115-124 125-132 133-142 143-152 153-162



      SHOES SIZE GUIDE

      MEN SHOES
      US Size 6.5 7 7.5 7.5 8 8.5 9 9.5 9.5 10 10.5 11 11.5 11.5 12 12.5 13
      EU Size 39 39.5 40 40.5 41 41.5 42 42.5 43 43.5 44 44.5 45 45.5 46 46.5 47
      Foot Length (in) 1/2 3/4 10 10 10 1/4 10 1/2 10 1/2 10 1/2 10 3/4 10 3/4 11 11 1/4 11 1/4 11 1/2 11 1/2 11 1/2 11 3/4



      WOMEN SHOES
      US Size 4 4.5 5 5.5 5.5 6 6.5 7 7.5 7.5 8 8.5 9 9 9.5 10 10.5
      EU Size 34 34.5 35 35.5 36 36.5 37 37.5 38 38.5 39 39.5 40 40.5 41 41.5 42
      Foot Length (in) 1/2 1/2 1/2 3/4 3/4 9 1/4 1/4 1/2 1/2 1/2 3/4 10 10 10 1/4 10 1/2 10 1/2



      KIDS SHOES
      US Size 4.5C 5C 5.5C 6C 7C 7.5C 8.5C 9C 10C 11.5C 12.5C 13C 1 2 2.5 3.5 4 5
      EU Size 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
      Foot Length (in) 3/4 5 1/4 1/2 3/4 6 1/4 1/2 3/4 7 1/4 1/2 3/4 8 1/4 1/2 3/4 1/4



      GEAR SIZE GUIDE

      KIDS BIKES
      Bike size 12" 14" 16" 20" 24"
      Kids height (cm) 75-​90 90-​105 105-120 120-135 135-155
      kids height (ft) 2'5'' - 3' 3' - 3'5'' 3'5'' - 3'11'' 3'11''- 4'5'' 4'5'' - 5'1''



      ROAD BIKES
      Bike size 48 (XS) 51 (S) 54 (M) 57 (L) 60 (XL)
      Your height (cm) 135-150 150-165 165-176 176-184 184-195



      MOUNTAIN BIKES
      Bike size XS S M L XL
      Your height (cm) 135-150 150-165 165-176 176-184 184-195



      SKIS
      Ski size 115-130 125-140 130-145 135-150 135-155 145-165 150-170 155-175 160-180 165-185 170-190 175-195 180-200
      Your height (cm) 132 137 142 147 152 158 163 168 173 178 183 188 193



      SNOWBOARDS
      Snowboard size 128-136 133-141 139-147 144-152 149-157 154-162 159-167 160+ 160+ 160+
      Your height (cm) 147 152 158 163 168 173 178 183 188 193
      Your weight (lb) 50-55 55-60 60-65 65-70 70-75 75-80 80-85 85-90 90-95 95-100



      ACCESSORIES SIZE GUIDE

      KIDS GLOVES
      Glove size 4 Years 6 Years 8 Years 10 Years 12 Years 14 Years
      Hand size (cm) 13.9-14.9 14.9-15.9 15.9-16.9 16.9-17.8 17.8-18.6 18.6-19.5



      ADULT GLOVE
      Glove size XS S M L XL 2XL 3XL
      Hand size (cm) 20.3-20.8 20.9-21.4 21.5-22.1 22.2-22.7 22.8-23.4 23.5-24 24.1-24.7



      BOXING GLOVES
      Glove size 6oz 8oz 10oz 12oz 14oz
      Your weight (lb) 77-99 99-143 143-172 172-198 >198

      Product description

      Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF 105 combines handling and comfort.

      This lightweight bike is made for speed. Enjoy the performance of the aluminium frame, carbon/aluminium fork, Shimano 105 groupset and R6 fulcrum wheels.

      Description

      Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF 105 combines handling and comfort.

      Frame

      New Van Rysel aluminium frame (AF) with variable thickness to lighten the frame as much as possible. Aluminium is the perfect material for getting a good balance of propulsion and comfort. The frame has an endurance geometry (EDR) which allows you to tackle long distances with maximum comfort. We have chosen to leave the cables on the outside of the frame for easier maintenance and replacement of cables and housings. The frame is UCI-approved

      FORK

      Carbon and aluminium Van Rysel fork. A perfect choice for precision steering and performance at a reasonable price. Simple pivot brake for a biting brake. Frame weight: 1450 to 1470g in size M Fork weight: 640g in size M

      Drive train

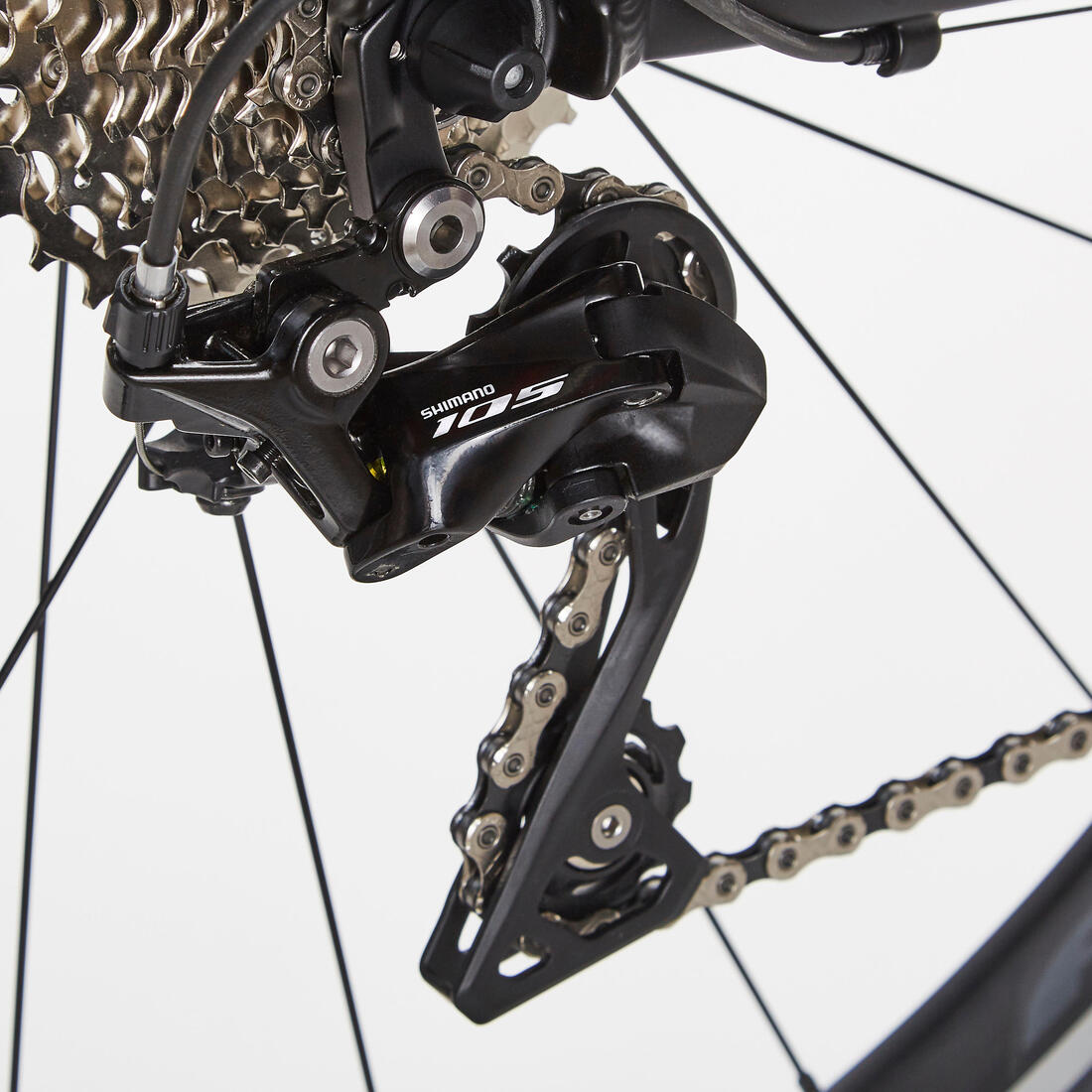

      Shimano 11-speed drive train Shimano 105 R7000 double front derailleur. Shimano 105 R7000 GS 11-speed rear derailleur. Shimano RS510 double compact chainset.

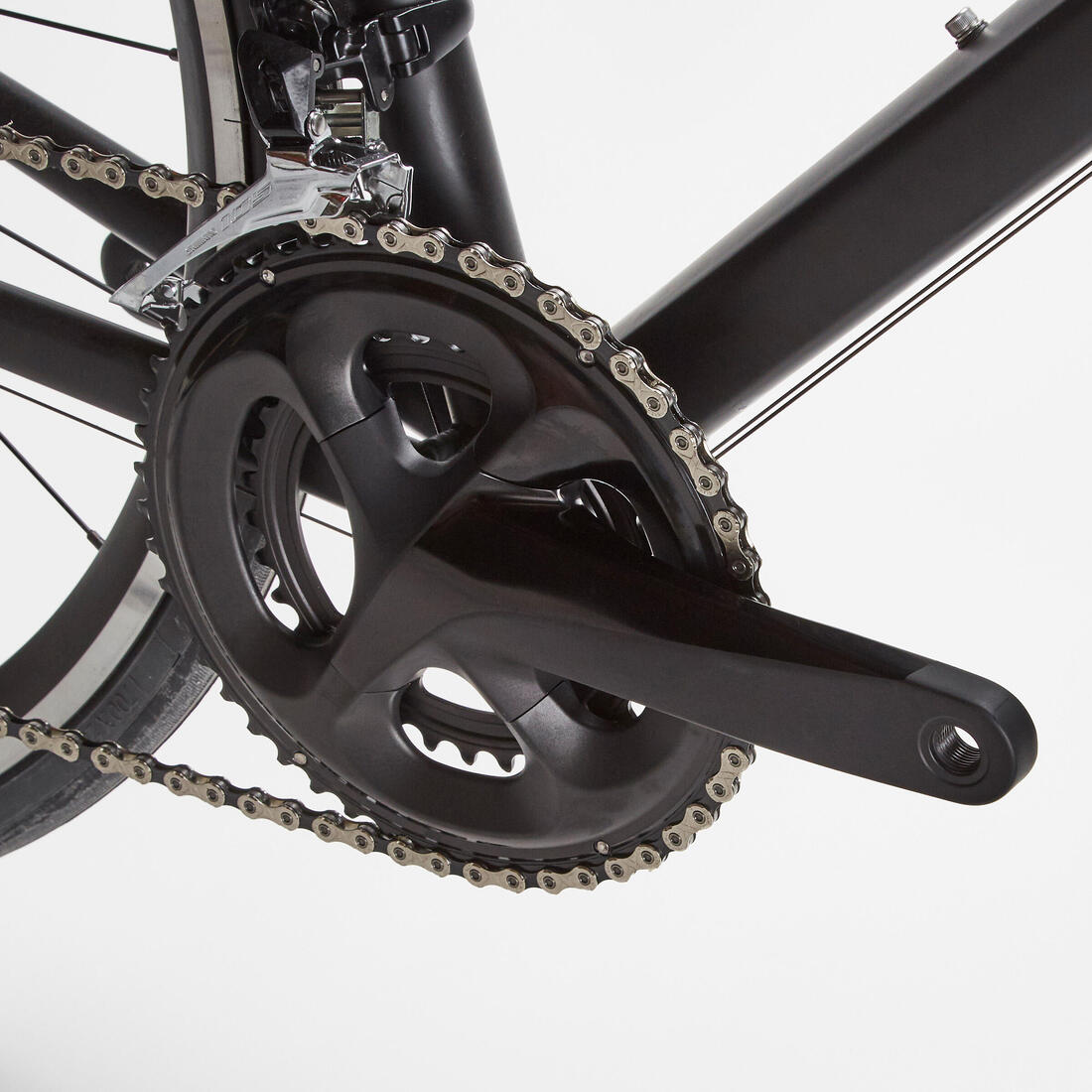

      CHAINSET/CASSETTE

      Shimano RS510 50x34 crankset. Crank length varies according to size of bike: S: 170 mm M: 172.5 mm L: 175 mm Microshift 11S 11x32 cassette (11-12-13-14-15-17-19-21-24-28-32)

      Wheels

      Fulcrum Racing 6 aluminium wheels, 1760g per pair. Differentiated rear (27.5 mm) and front (24.5 mm) height Rim with 17C inner width 23mm width compatible with 25mm to 50mm tyres. The frame is approved for tyres measuring 28mm maximum. Aluminium hub Sealed cartridge bearings

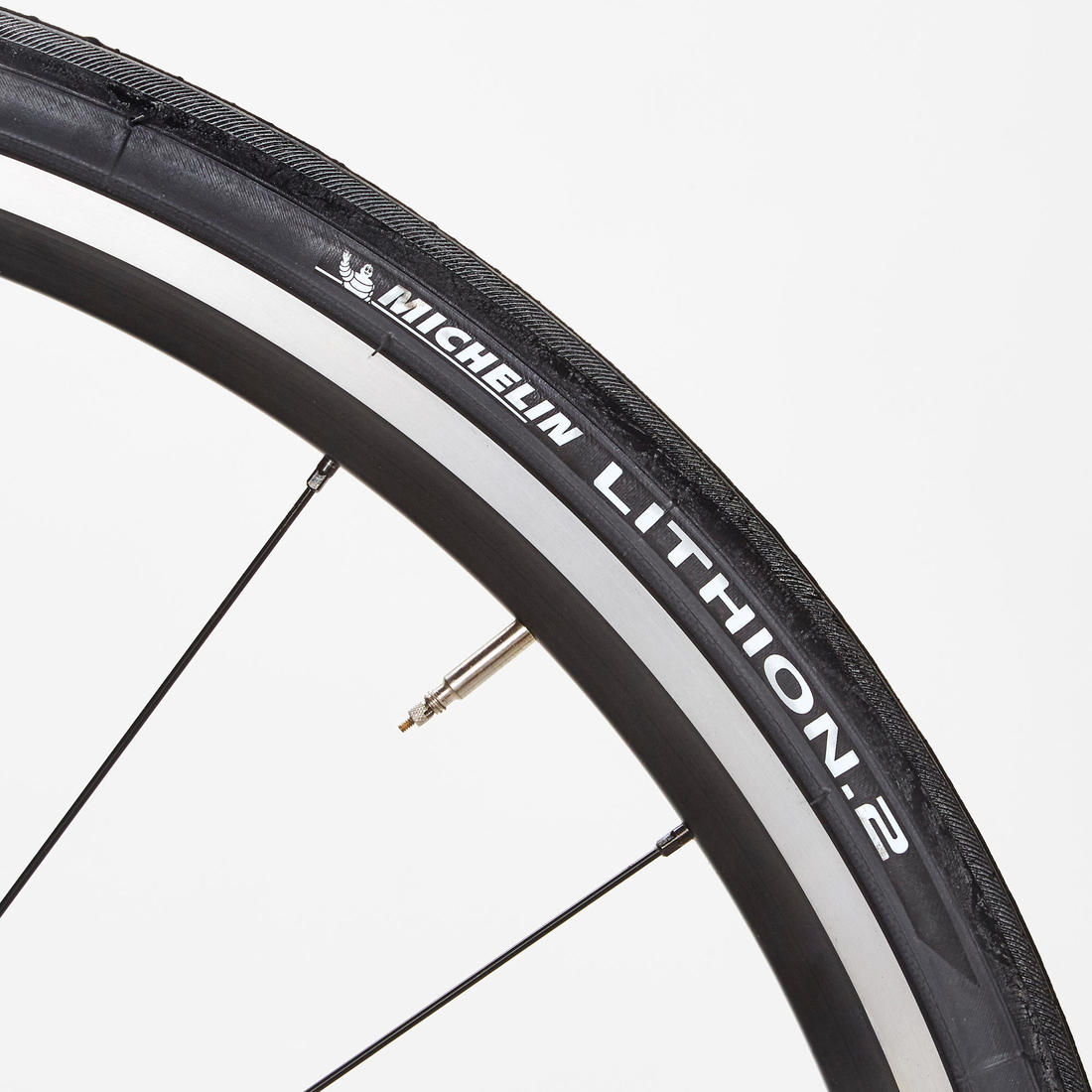

      Tyres

      Michelin lithion 2 in 25 mm for maximum comfort. This model is known for its longevity and good puncture resistance. Excellent grip and high performance, this flexible bead tyre is versatile and efficient.

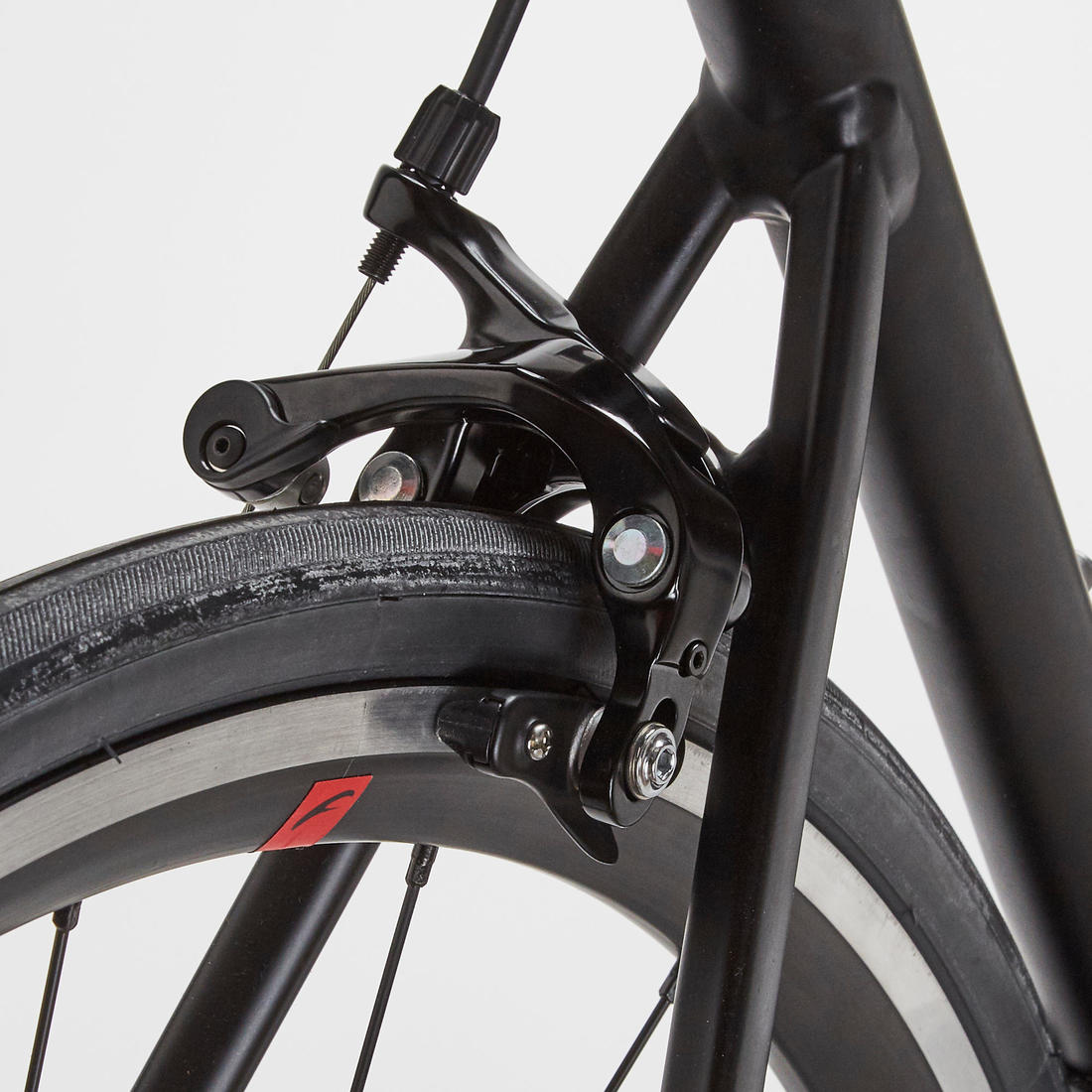

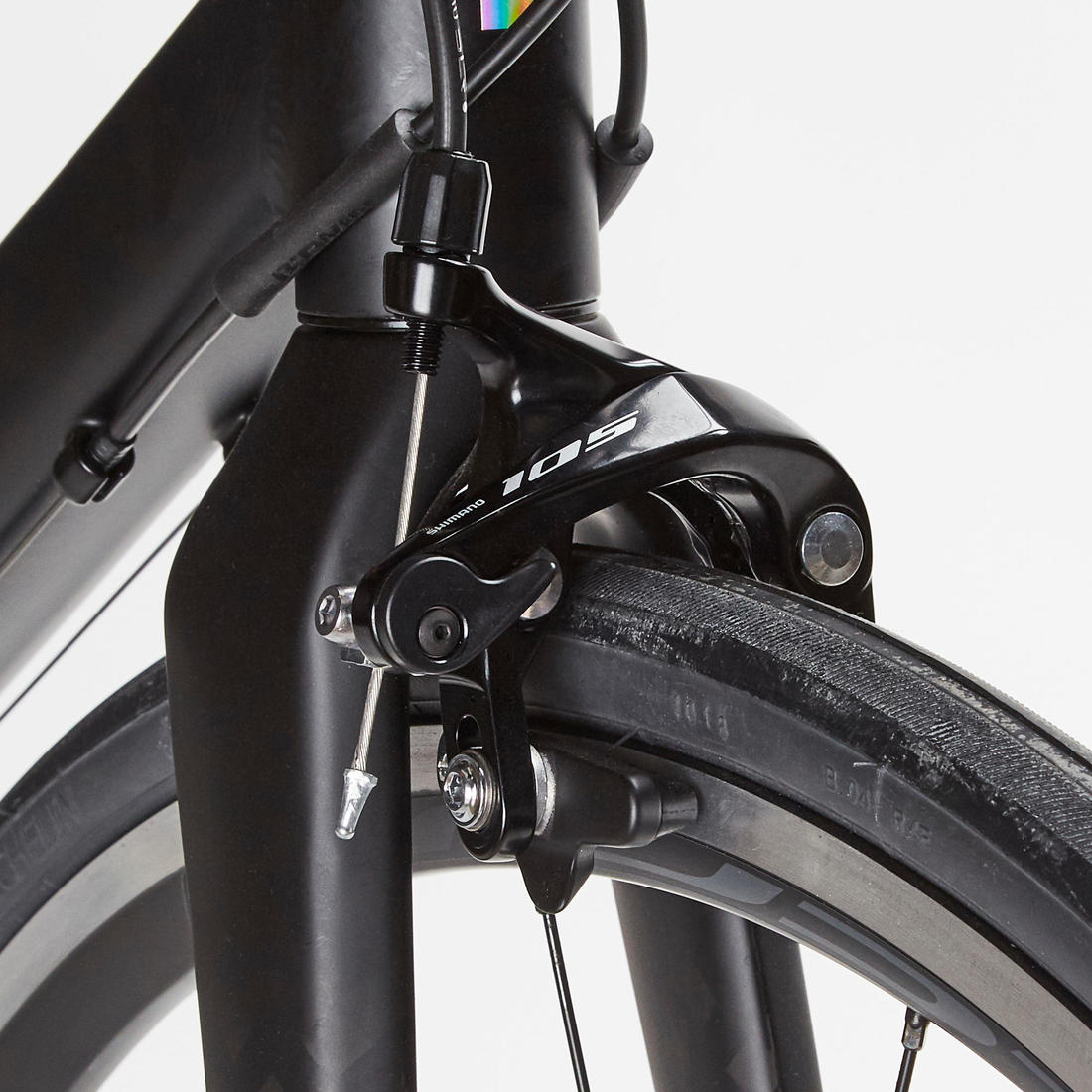

      Brakes

      Shimano 105 R7000 brakes Made of cast aluminium and covered with a powder paint that withstands frequent cleaning.

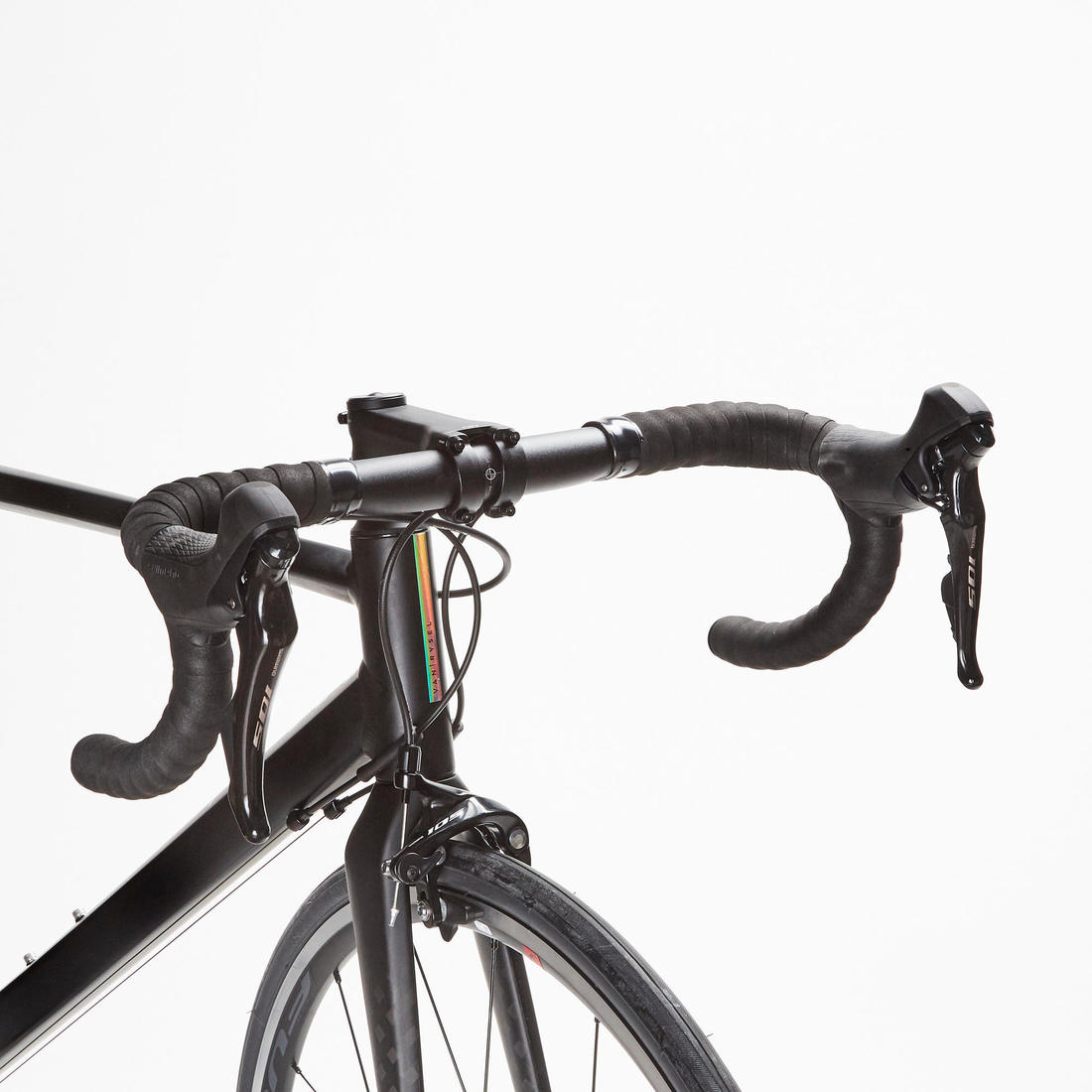

      Handlebar / stem / steering

      The compact 6061 S6 aluminium VanRysel handlebar is sized to the bike. The handlebar weighs 320 g in size 420 mm. End-end width: XS, S 400mm. M, L 420mm. XL 440mm. VR oversize aluminium stem Weight of 140g in size 110mm. Length XS 80mm S 90mm M 100mm L 110mm XL 120mm Sealed bearings; diameter is 1 1/8" at the top and 1 1/4" at the bottom.

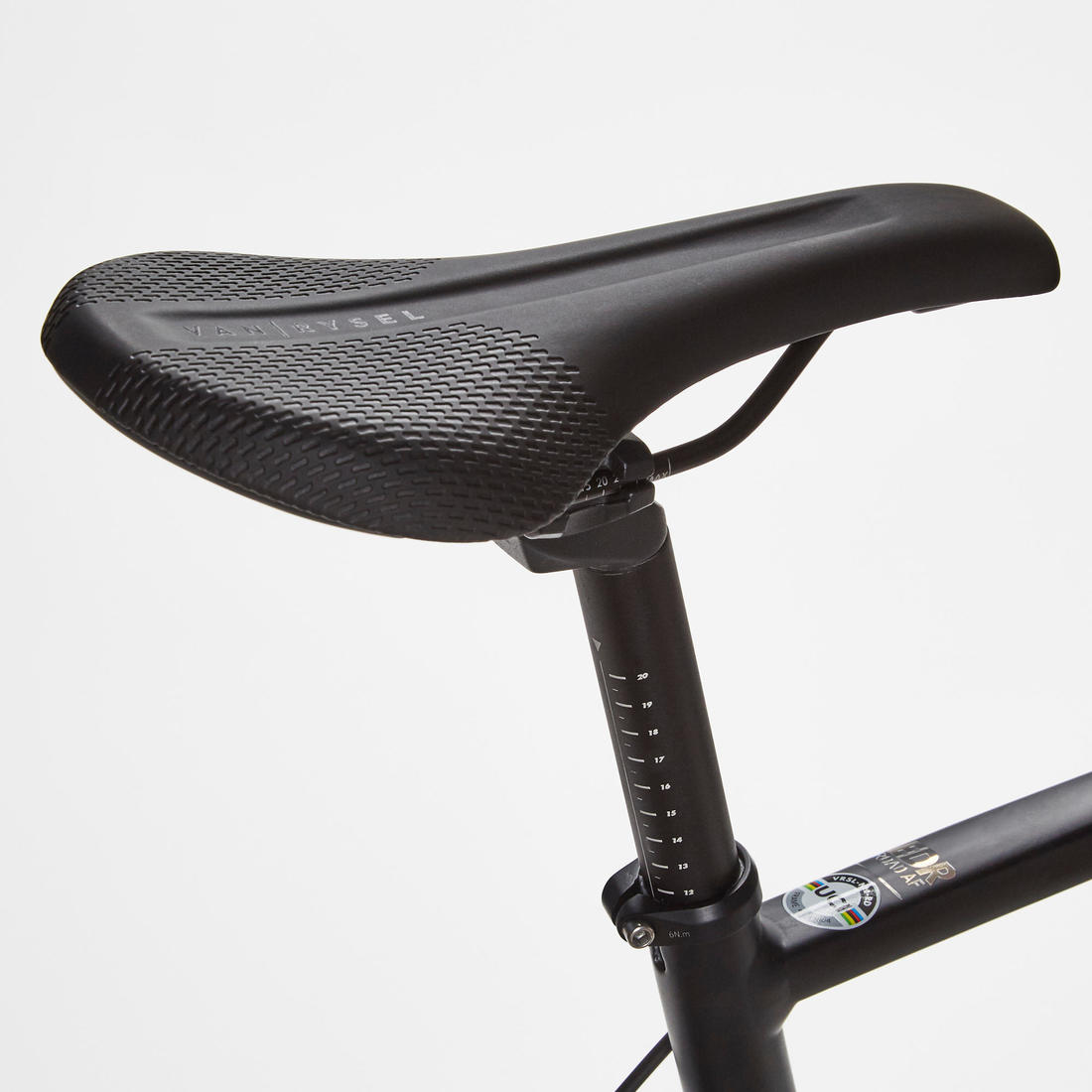

      Saddles / Seat Post

      VanRysel Sport 900 saddle, chosen for its comfort and efficiency. Weight: 257g. VanRysel racing aluminium seat post. Diameter: 27.2mm. Length: 350mm.Weight: 240g.

      Pedals

      Pedals not included.

      Accessories

      Comes with a front and rear-lighting kit and bell.Comes with a torque spanner to ensure the recommended torques and adjustments

      Weight

      8.8kg in size M, without pedals.

      WHAT IS THE MAXIMUM TYRE SIZE YOU CAN FIT?

      The frame and fork are compatible with tyres with a maximum size of 700 x 28mm

      This lightweight bike is made for speed. Enjoy the performance of the aluminium frame, carbon/aluminium fork, Shimano 105 groupset and R6 fulcrum wheels.

      Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF 105 combines handling and comfort.

      Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF 105 combines handling and comfort.

      Frame

      New Van Rysel aluminium frame (AF) with variable thickness to lighten the frame as much as possible. Aluminium is the perfect material for getting a good balance of propulsion and comfort. The frame has an endurance geometry (EDR) which allows you to tackle long distances with maximum comfort. We have chosen to leave the cables on the outside of the frame for easier maintenance and replacement of cables and housings. The frame is UCI-approved

      FORK

      Carbon and aluminium Van Rysel fork. A perfect choice for precision steering and performance at a reasonable price. Simple pivot brake for a biting brake. Frame weight: 1450 to 1470g in size M Fork weight: 640g in size M

      Drive train

      Shimano 11-speed drive train Shimano 105 R7000 double front derailleur. Shimano 105 R7000 GS 11-speed rear derailleur. Shimano RS510 double compact chainset.

      CHAINSET/CASSETTE

      Shimano RS510 50x34 crankset. Crank length varies according to size of bike: S: 170 mm M: 172.5 mm L: 175 mm Microshift 11S 11x32 cassette (11-12-13-14-15-17-19-21-24-28-32)

      Wheels

      Fulcrum Racing 6 aluminium wheels, 1760g per pair. Differentiated rear (27.5 mm) and front (24.5 mm) height Rim with 17C inner width 23mm width compatible with 25mm to 50mm tyres. The frame is approved for tyres measuring 28mm maximum. Aluminium hub Sealed cartridge bearings

      Tyres

      Michelin lithion 2 in 25 mm for maximum comfort. This model is known for its longevity and good puncture resistance. Excellent grip and high performance, this flexible bead tyre is versatile and efficient.

      Brakes

      Shimano 105 R7000 brakes Made of cast aluminium and covered with a powder paint that withstands frequent cleaning.

      Handlebar / stem / steering

      The compact 6061 S6 aluminium VanRysel handlebar is sized to the bike. The handlebar weighs 320 g in size 420 mm. End-end width: XS, S 400mm. M, L 420mm. XL 440mm. VR oversize aluminium stem Weight of 140g in size 110mm. Length XS 80mm S 90mm M 100mm L 110mm XL 120mm Sealed bearings; diameter is 1 1/8" at the top and 1 1/4" at the bottom.

      Saddles / Seat Post

      VanRysel Sport 900 saddle, chosen for its comfort and efficiency. Weight: 257g. VanRysel racing aluminium seat post. Diameter: 27.2mm. Length: 350mm.Weight: 240g.

      Pedals

      Pedals not included.

      Accessories

      Comes with a front and rear-lighting kit and bell.Comes with a torque spanner to ensure the recommended torques and adjustments

      Weight

      8.8kg in size M, without pedals.

      WHAT IS THE MAXIMUM TYRE SIZE YOU CAN FIT?

      The frame and fork are compatible with tyres with a maximum size of 700 x 28mm

      This lightweight bike is made for speed. Enjoy the performance of the aluminium frame, carbon/aluminium fork, Shimano 105 groupset and R6 fulcrum wheels.

      Our new aluminium endurance bike will accompany you on your sport rides. The EDR AF 105 combines handling and comfort.
